Specifications
    Approval
    Recommendation
  • SAE J1034
  • AFNOR FRANCE NF R15-601
  • ASTM USA D3306
  • ASTM USA D4340
  • ASTM USA D4985
  • BSI GB BS 6580:2010
  • NATO S-759
  • BMW GS 94000
  • CHRYSLER MS-7170
  • FORD ESE-M978B4H-A
  • FORD AF Plus
  • GM 1825 M
  • GM 1899 M
  • GM SATURN
  • JAGUAR
  • JOHN DEERE
  • MAN 324 NF
  • MB 325.0
  • MINI GS 94000
  • MTU MTL 5048
  • OPEL GME L1301
  • OPEL GM QL130100
  • VAUXHALL GME L1301
  • Packaging

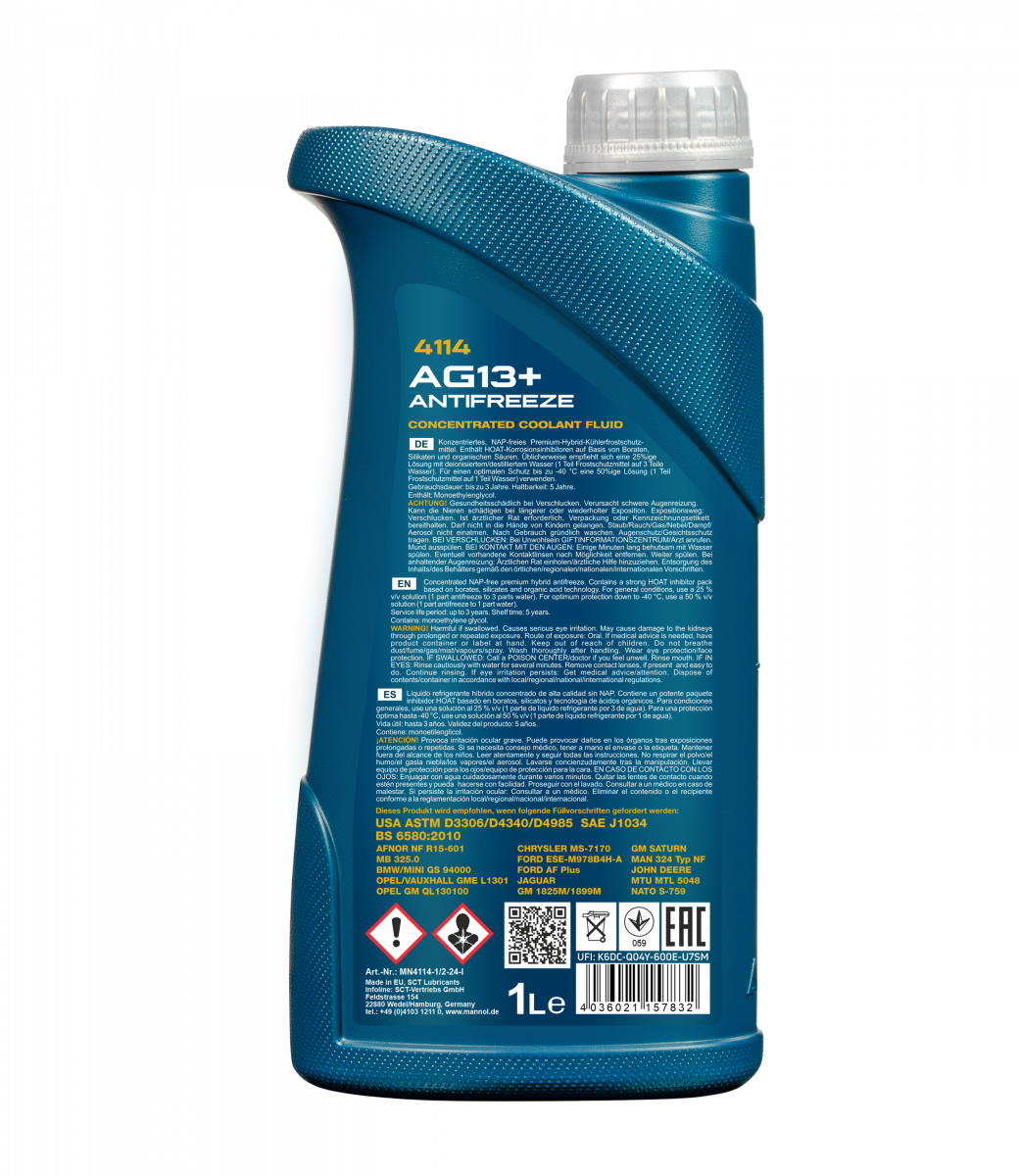

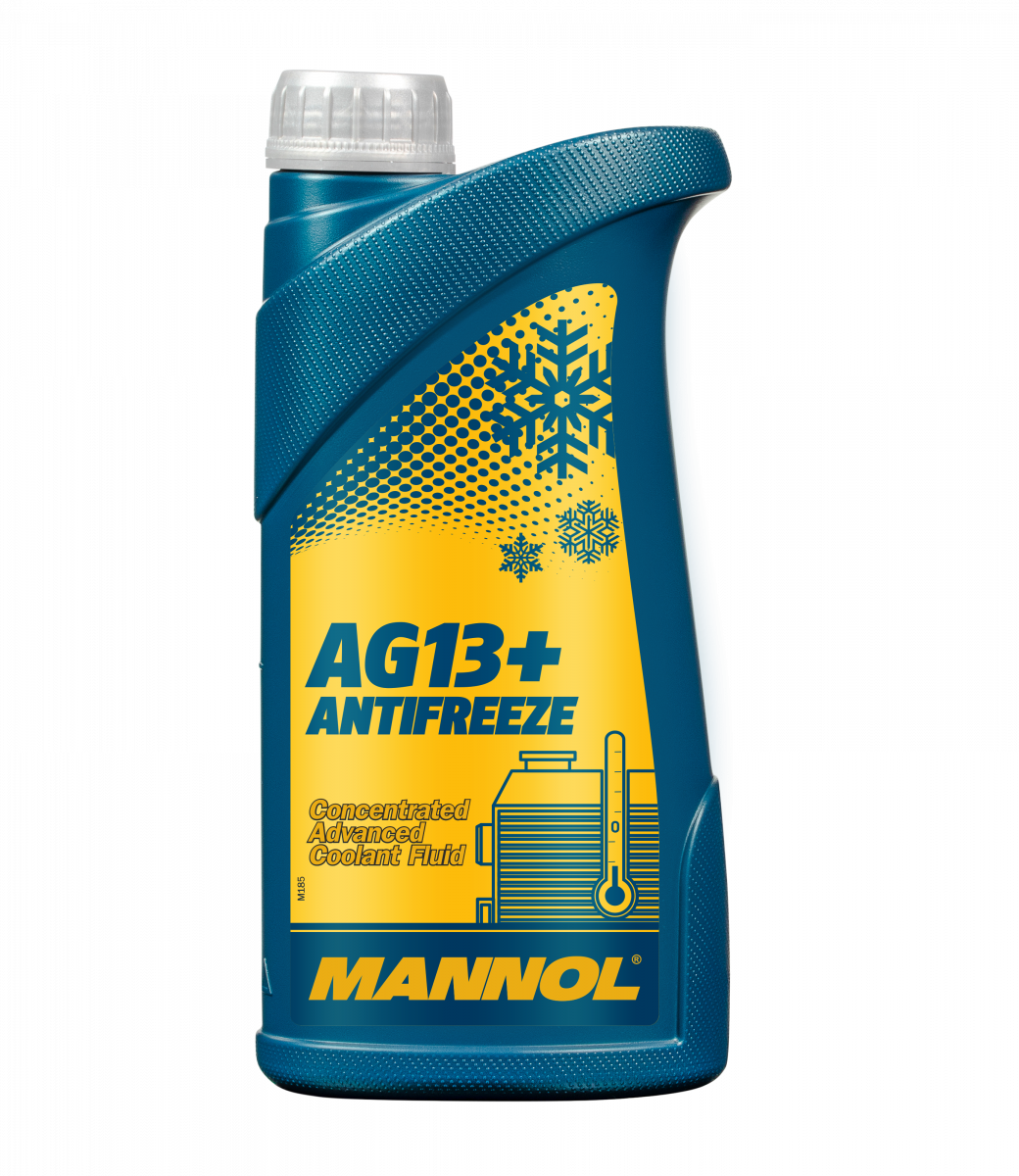

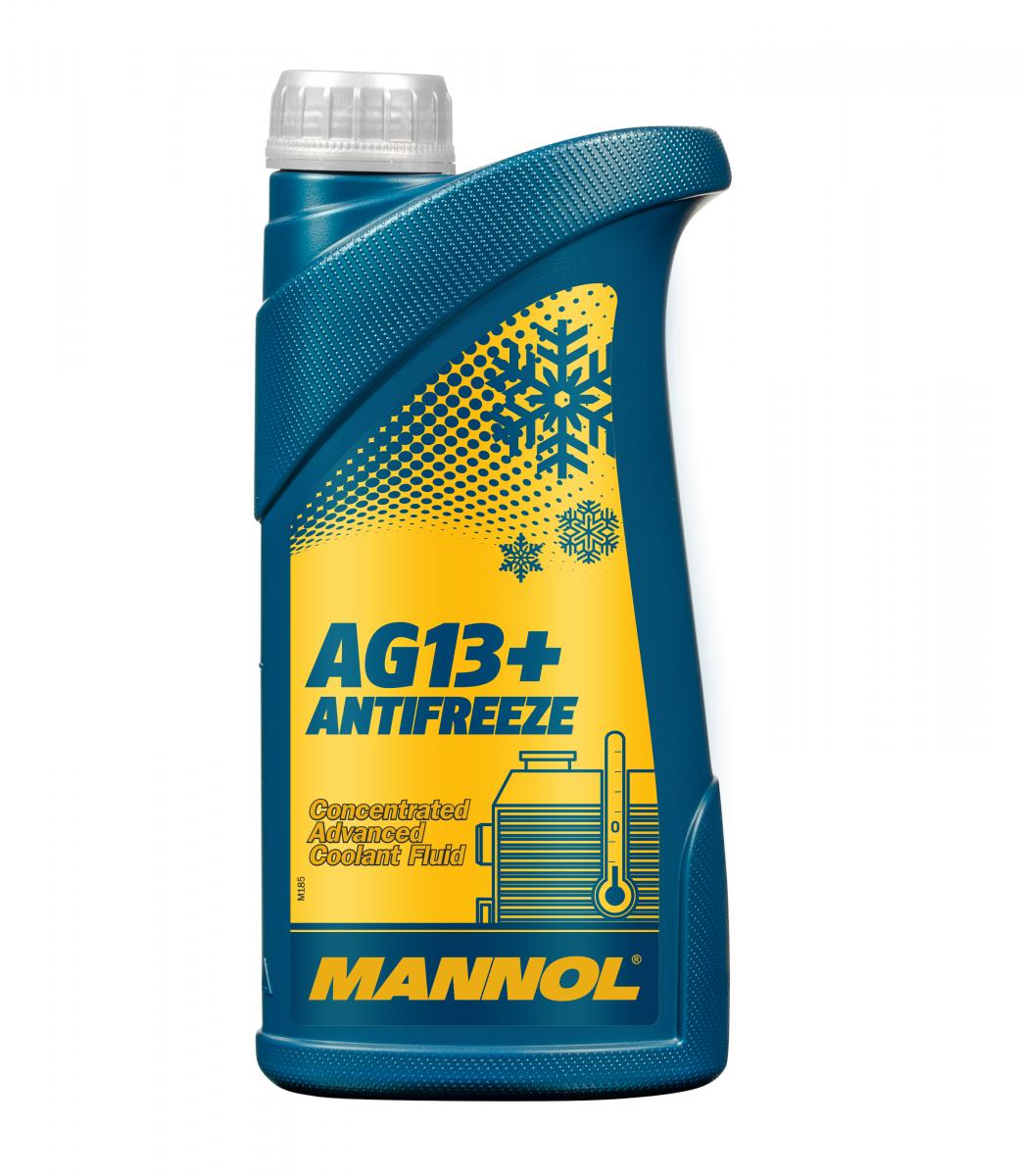

    1LMN4114-1Plastic20 pcs/box
    MN4114-1

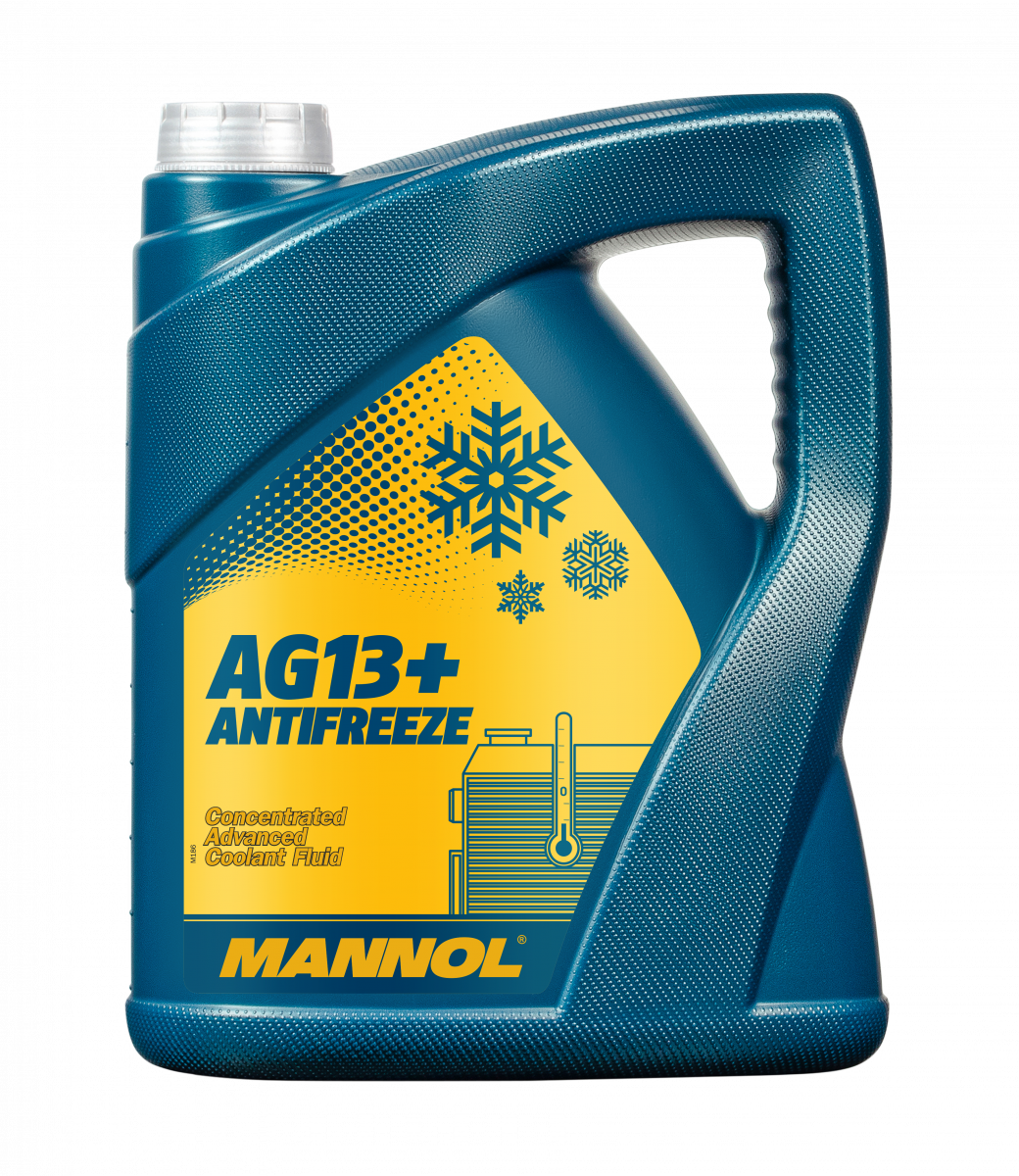

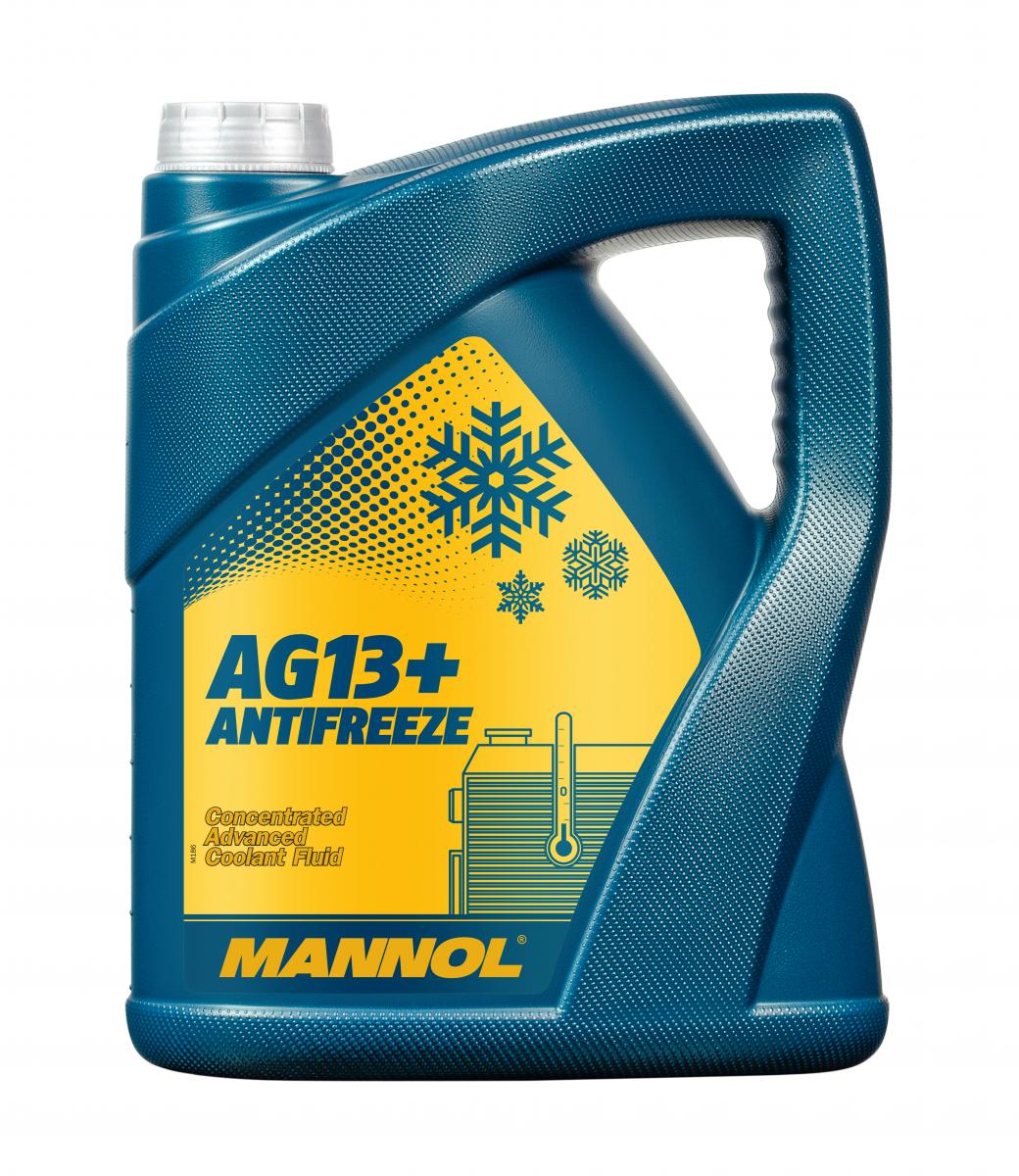

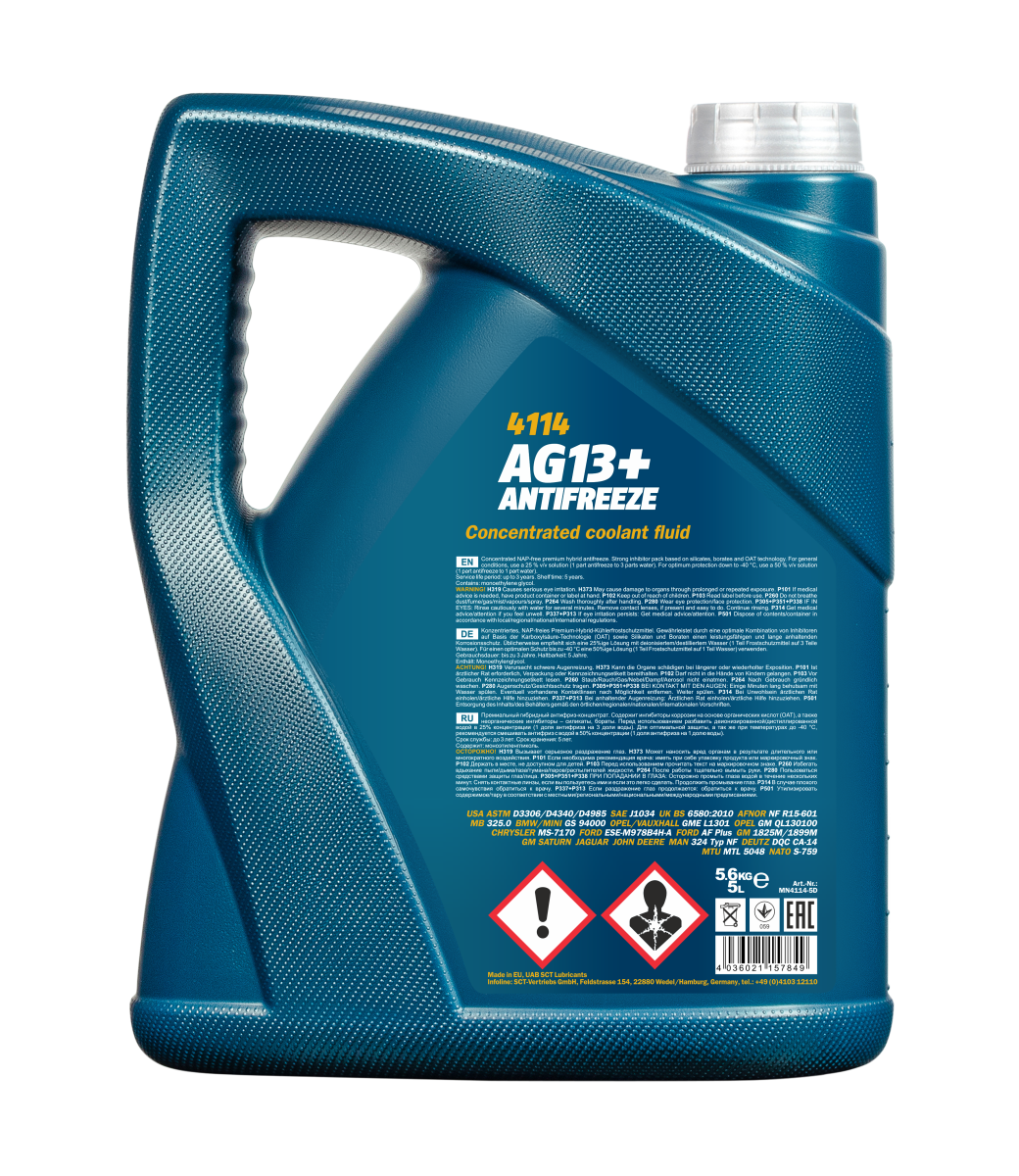

    5LMN4114-5Plastic
    MN4114-5

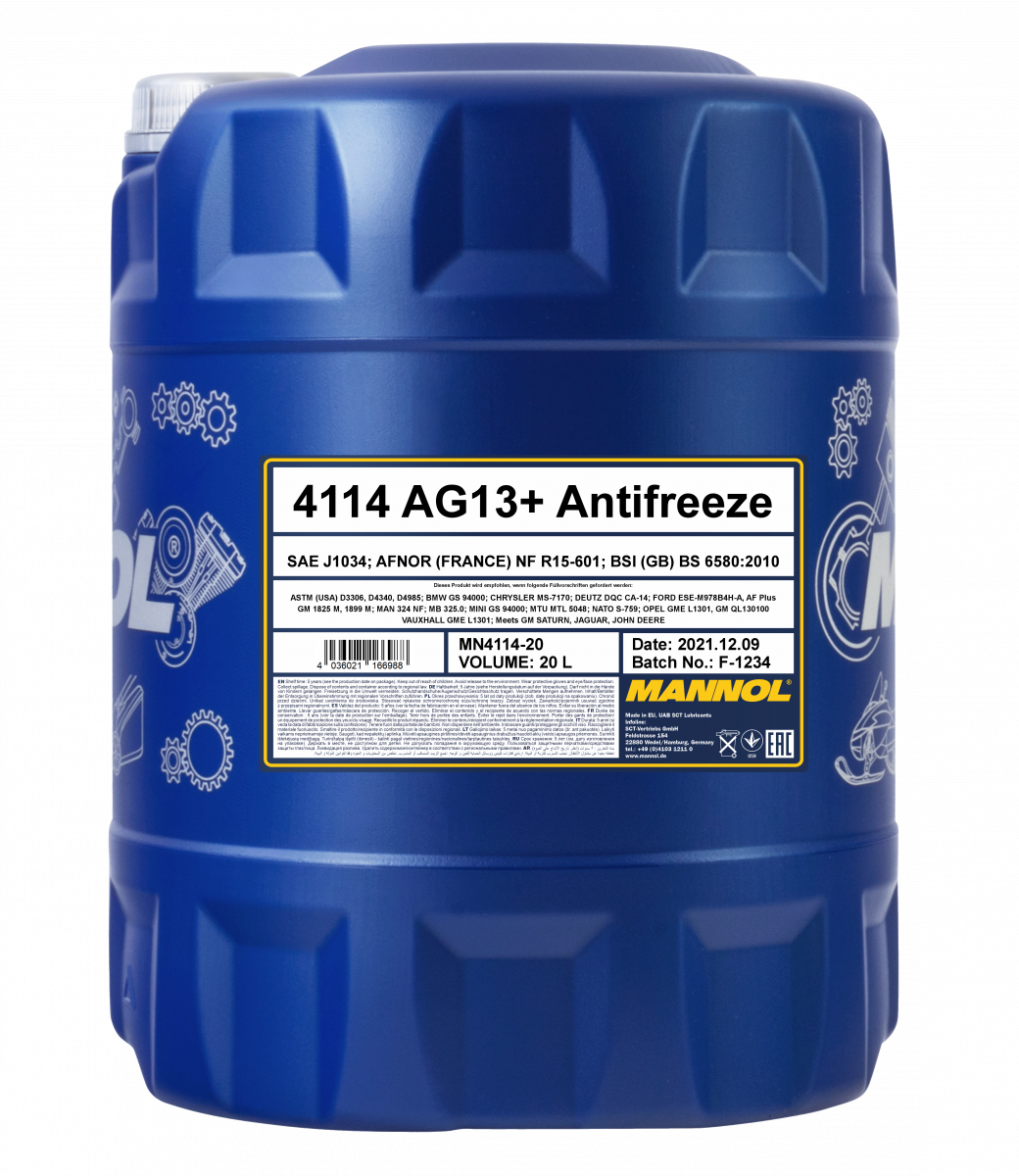

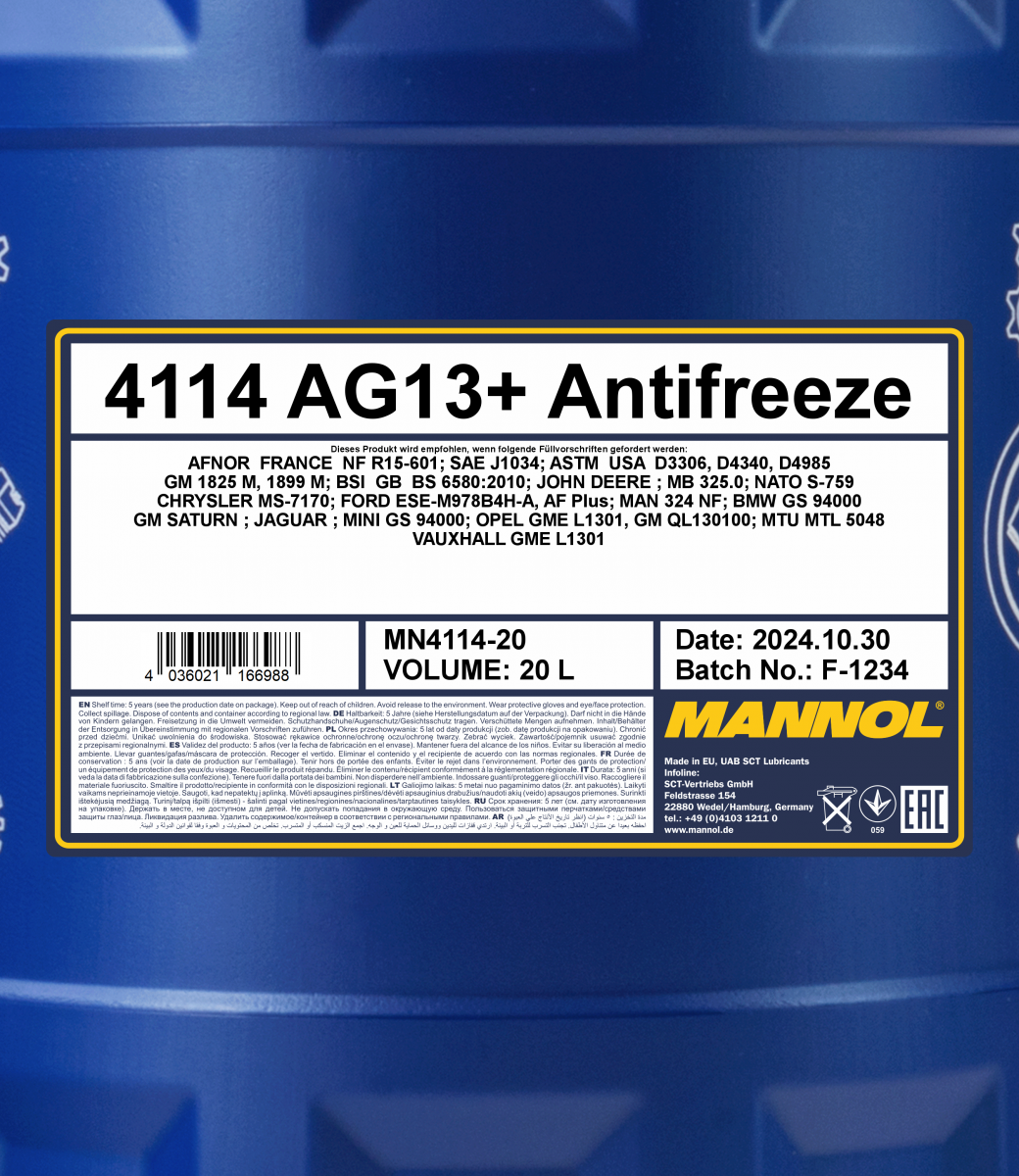

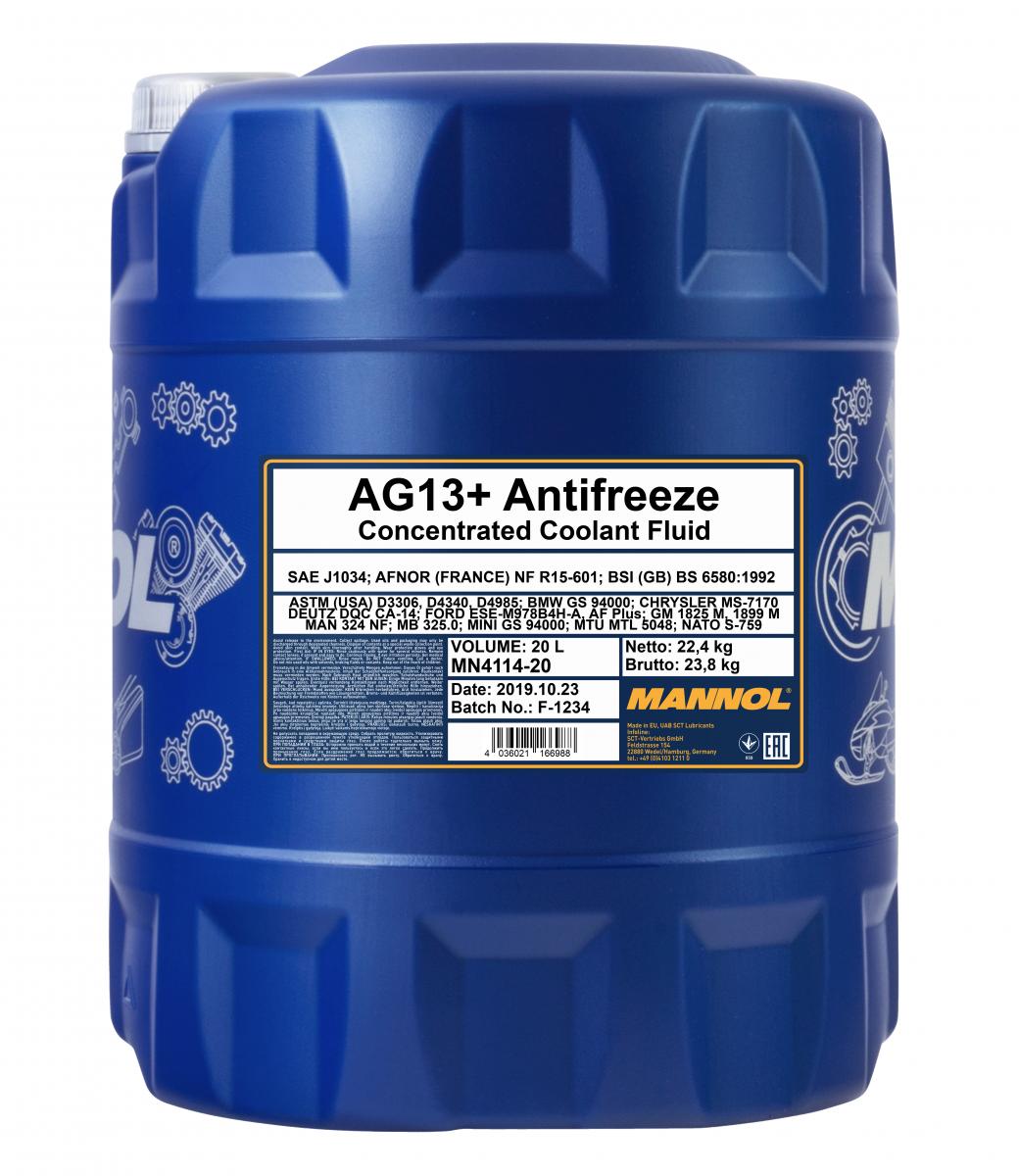

    20LMN4114-20Plastic
    MN4114-20

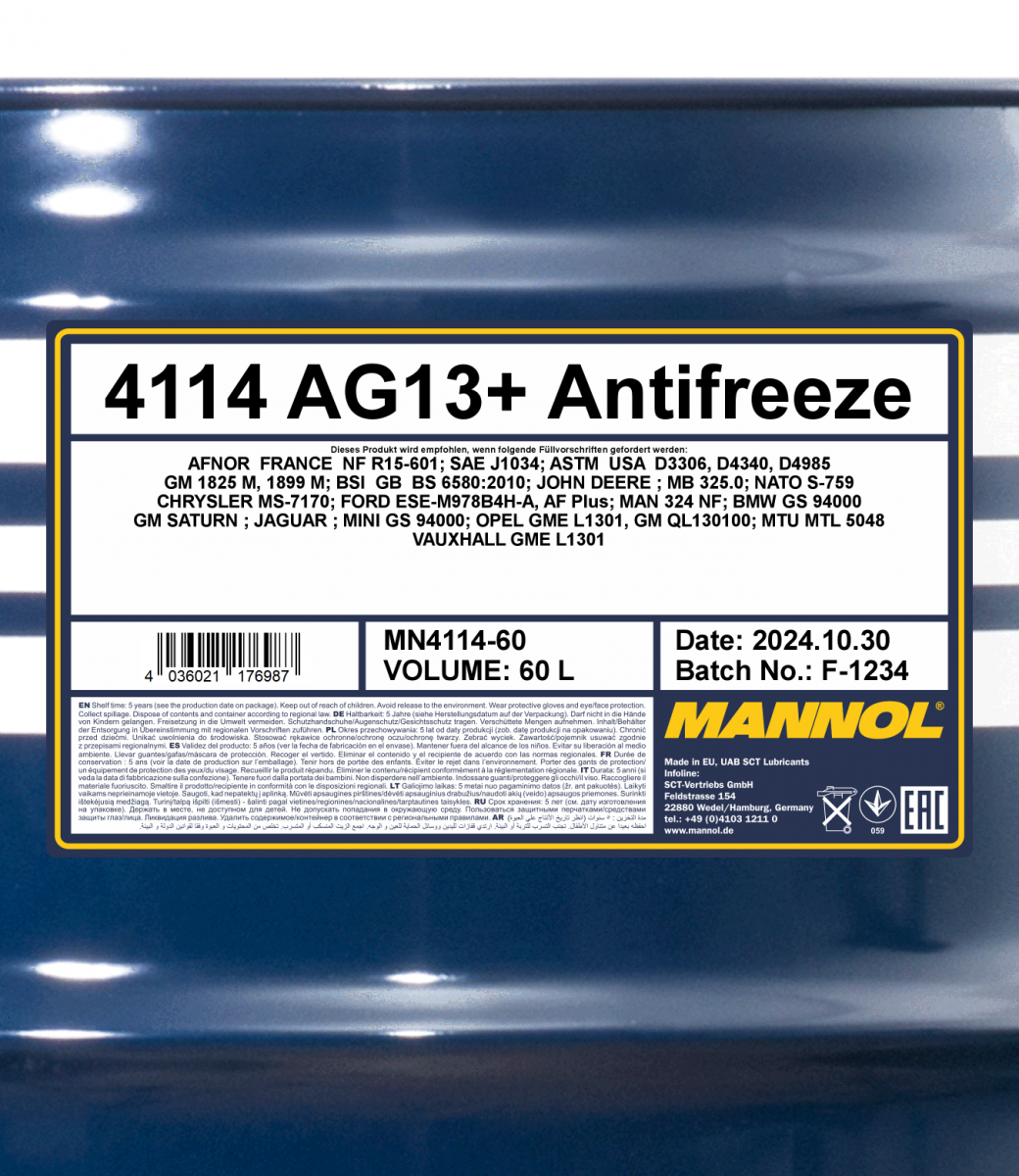

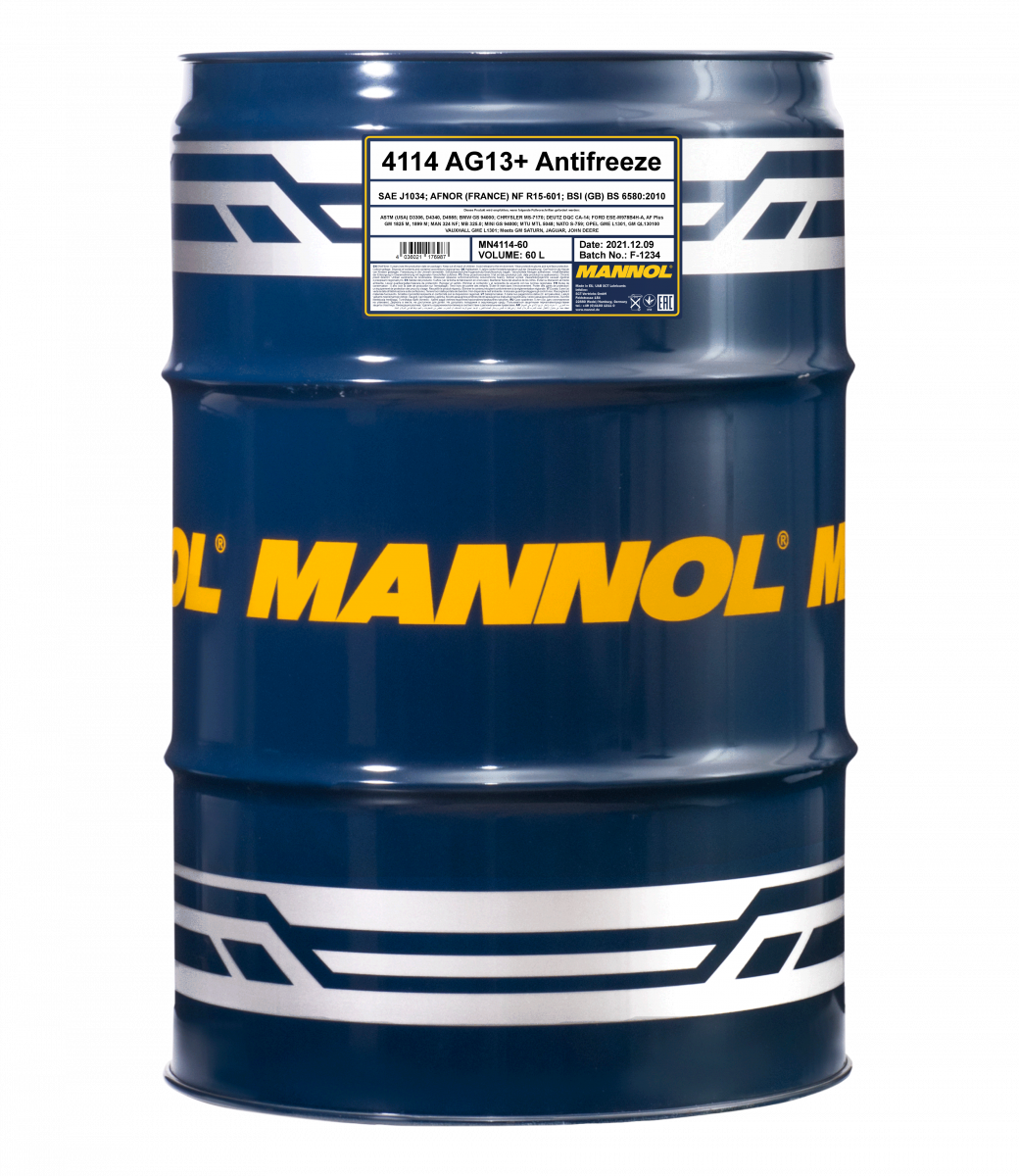

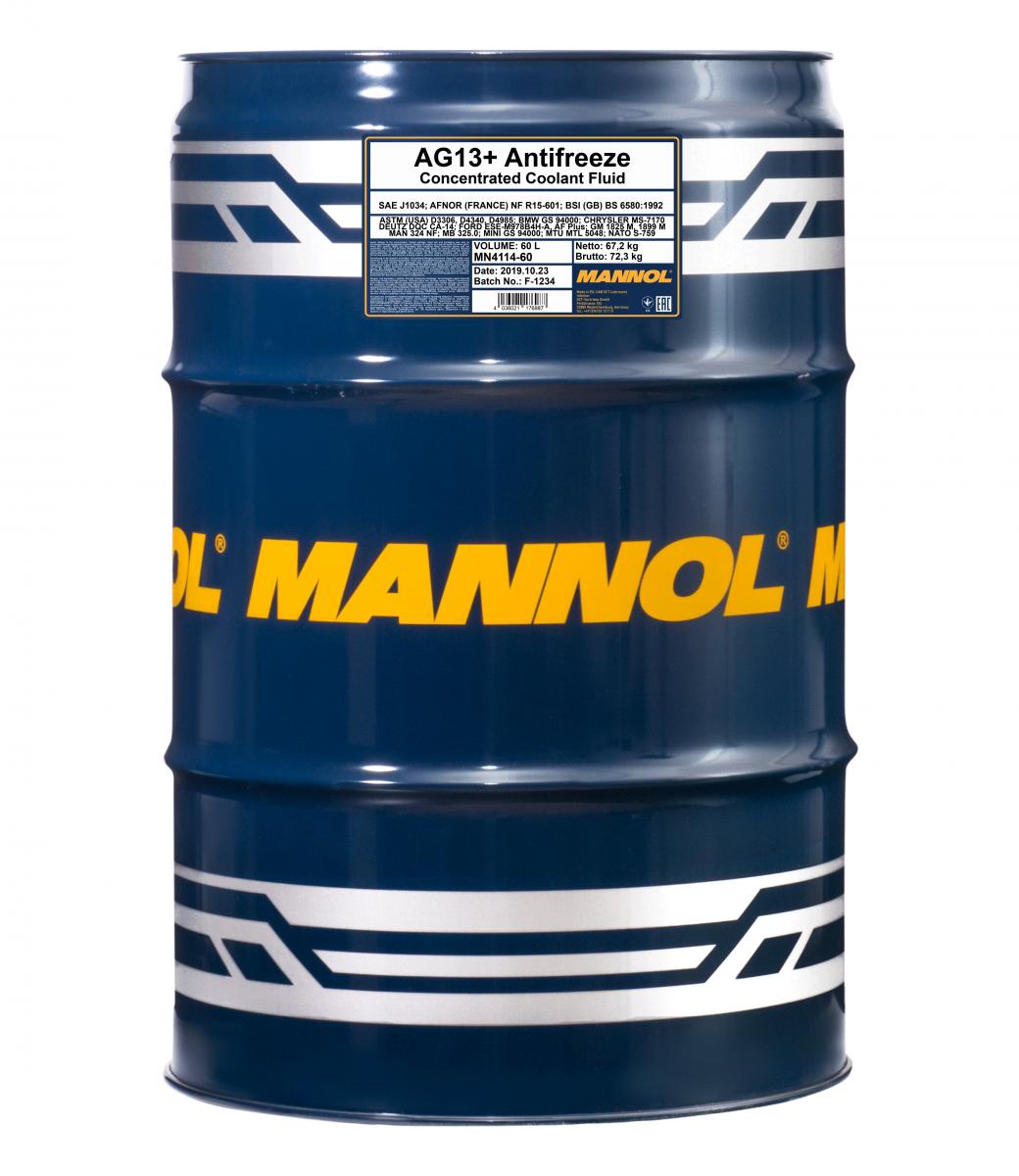

    60LMN4114-60Drum
    MN4114-60

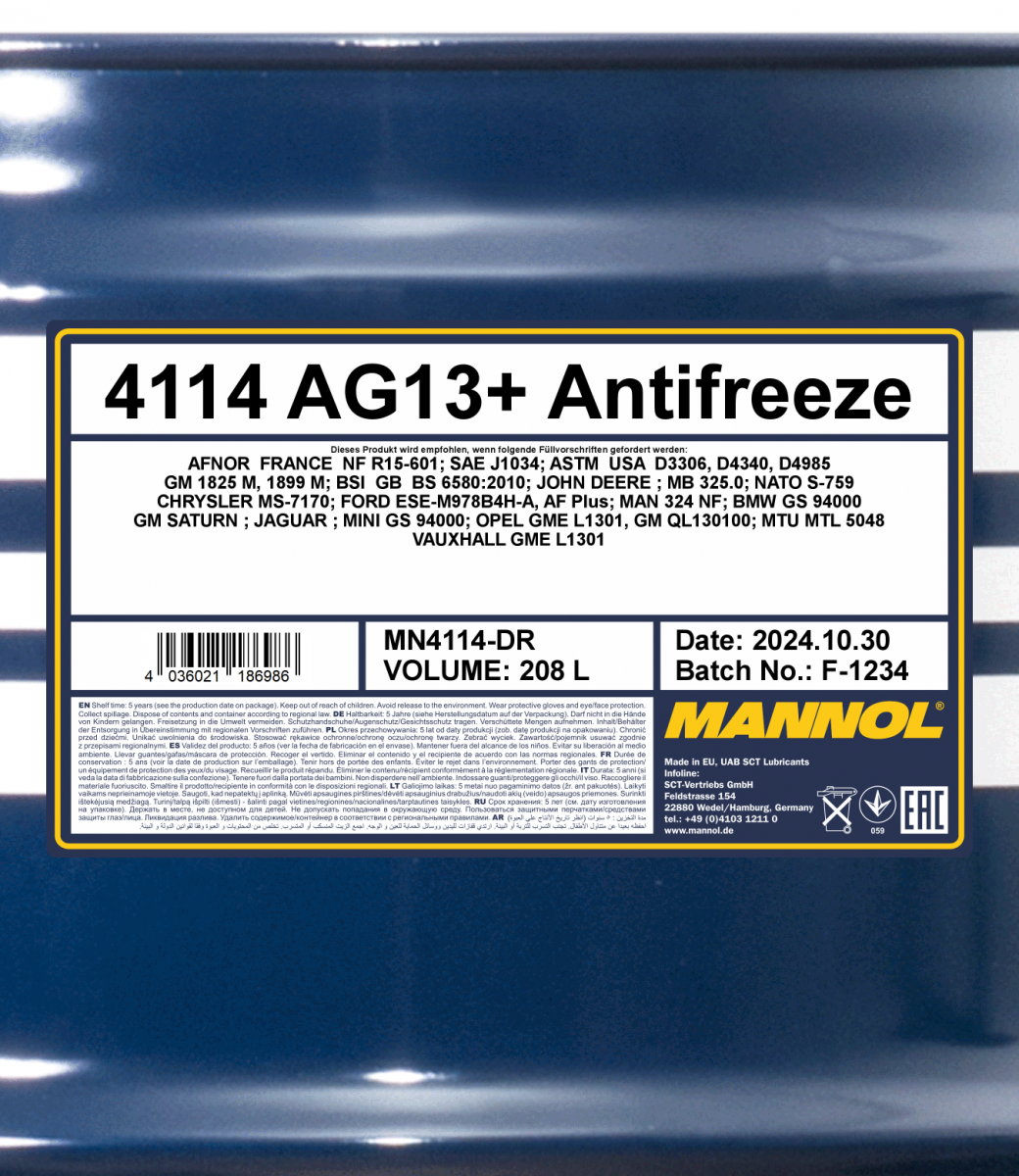

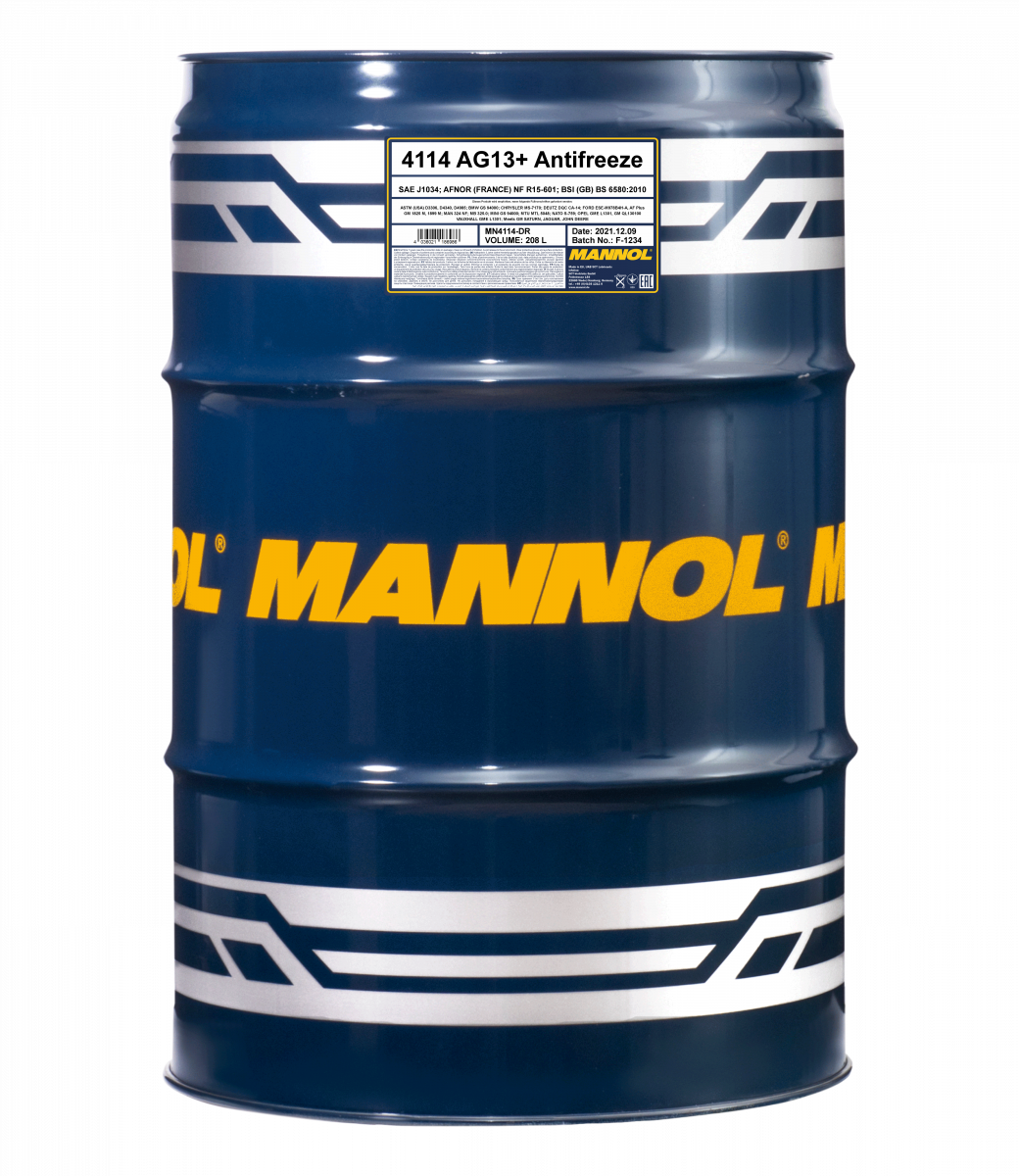

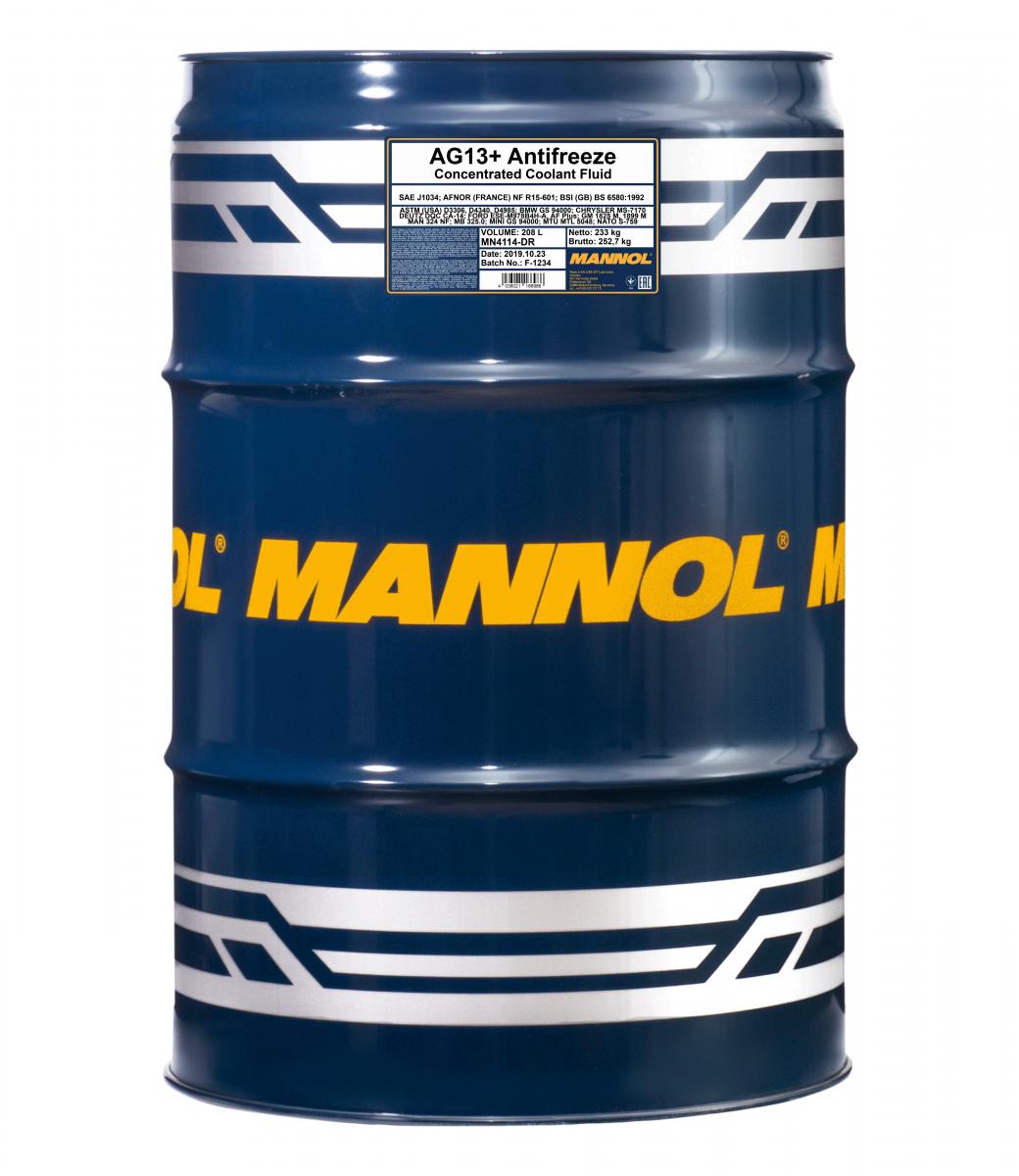

    208LMN4114-DRDrum
    MN4114-DR

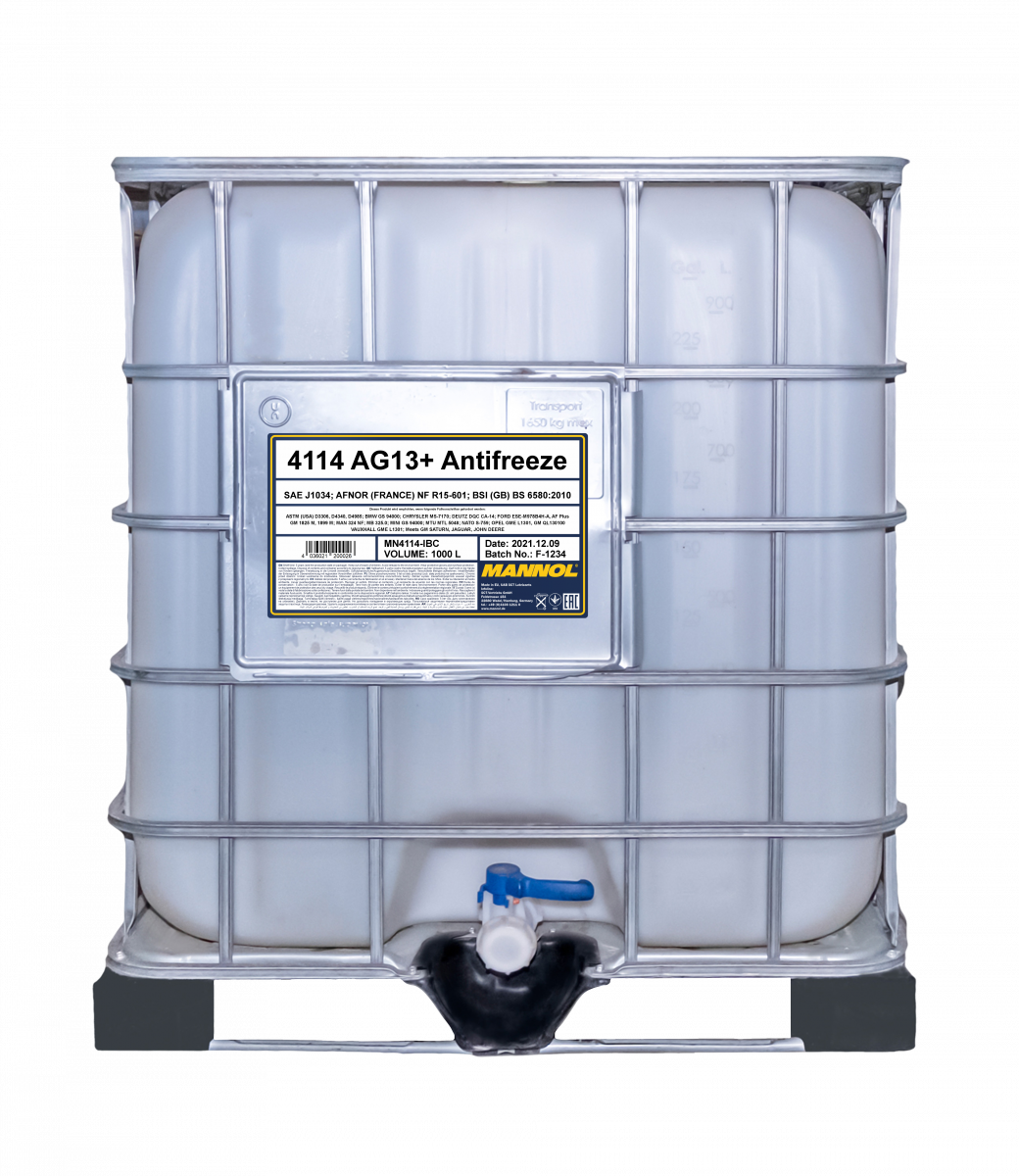

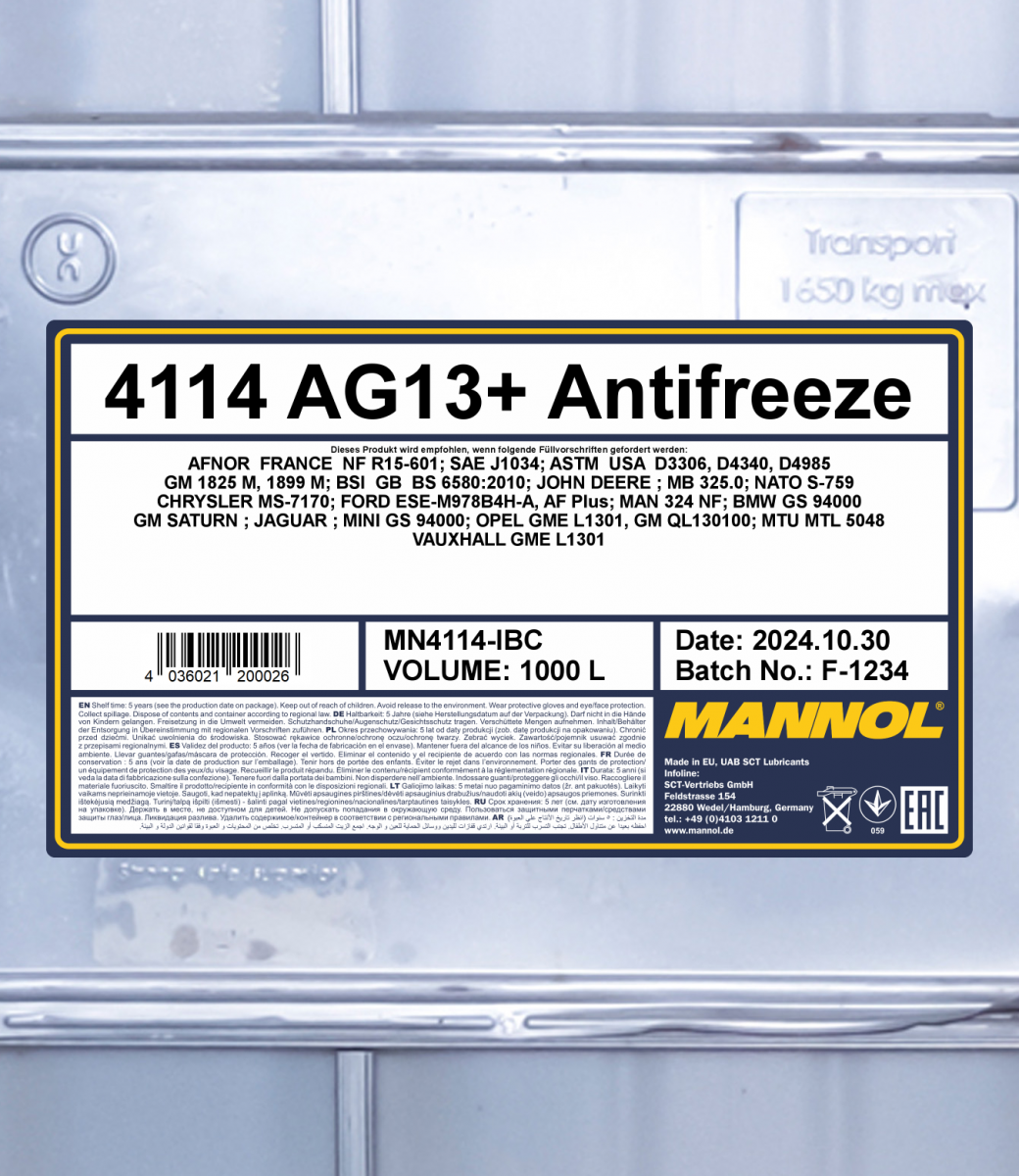

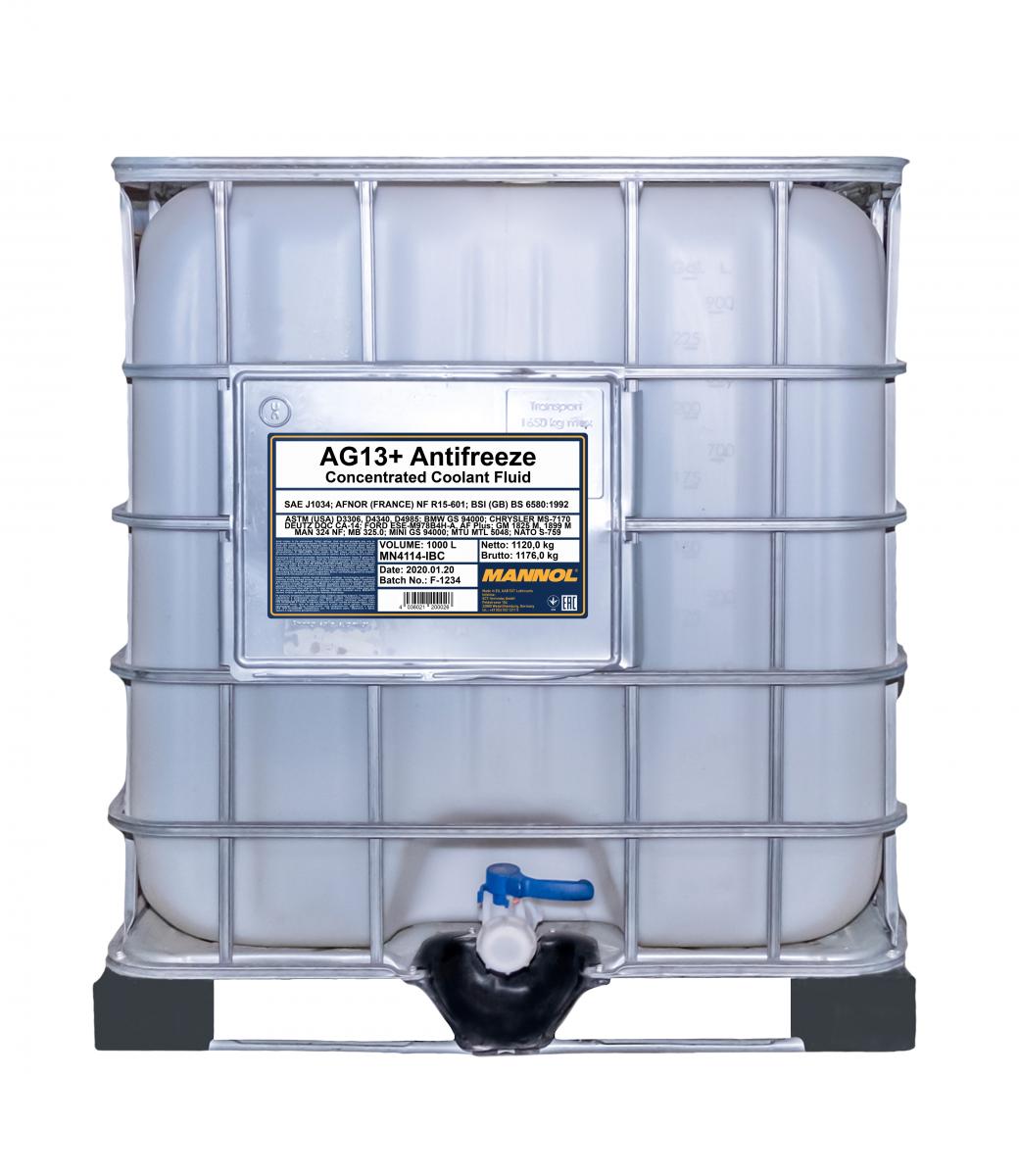

    1000LMN4114-IBCPallet tank
    MN4114-IBC

    MANNOL Antifreeze AG13+ Advanced 4114

    MN4114-1MN4114-5MN4114-20MN4114-60MN4114-DRMN4114-IBC

    A hybrid (HOAT – Hybrid Organic Acid Technology) high-technology concentrated antifreeze with excellent operating characteristics intended for a year-round use in any modern cooling system for which the use of mono-ethylene-glycol-based antifreeze is recommended.
    It ensures a reliable protection of any cooling system.

    Product properties:
    - It ensures a reliable protection of metals and alloys (brass, copper, alloy-treated steel, cast iron, aluminium) from all forms of corrosion, as well as prevents a high-temperature corrosion of aluminium surfaces of modern engines. It provides sufficient anti-corrosion properties from the concentration as low as 30%;
    - The non-organic additive package protects the surface at once and the organic part starts to act only when corrosion sources appear thus a maximum protection is reached from the start of use and the service life of the engine is extended;
    - It has an exceptional thermal stability. It protects from deposit formation;
    - It has excellent heat conductivity properties and a resistance to foam formation;
    - It is neutral to inserts and hoses, compatible with all types of rubber and plastic parts of the cooling system;
    - It has an excellent resistance to hard water and very low corrosion inhibitor depletion rates;
    - The high-efficiency additive package ensures an exceptional stability of operating properties of the antifreeze throughout the entire service life;
    - It contains a fluorescent dye allowing identifying even small leakages of the antifreeze in the UV light;
    - The balanced additive package allows maximally extending the service life of the solution;
    - It is a liquid with an elevated level of borates and silicates. It does not contain nitrates, phosphates and amines (the NAP free technology).

    Colour: yellow.

    Service life: no less than 5 years.
    Comply with the manufacturer’s instructions provided in the user’s manual!



    Pour point, °C   Mix ratio, %
    Coolant fluid ratio Water ratio
    -20 35 65
    -25 40 60
    -29 45 55
    -38 50 50
